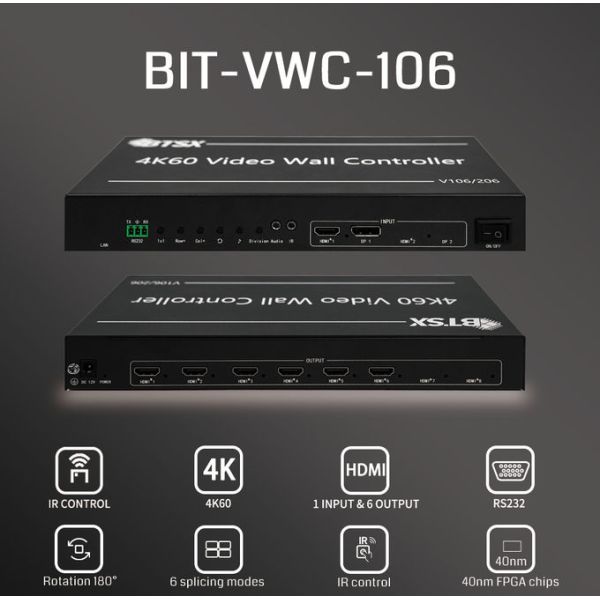

BIT-VWC-106 1x6 UHD Video Wall Controller
Professional HDMI/DP Input with 6 HDMI Outputs - 4K@60Hz Screen Splicer for Exhibition Display
Product Overview
The VWC-106 is an advanced Ultra HD video wall controller featuring zero-latency processing and flexible display configurations. This 1x6 video processor delivers exceptional performance for professional video wall applications.
Key Features
- 1 HDMI/DP input interface with 6 HDMI output interfaces

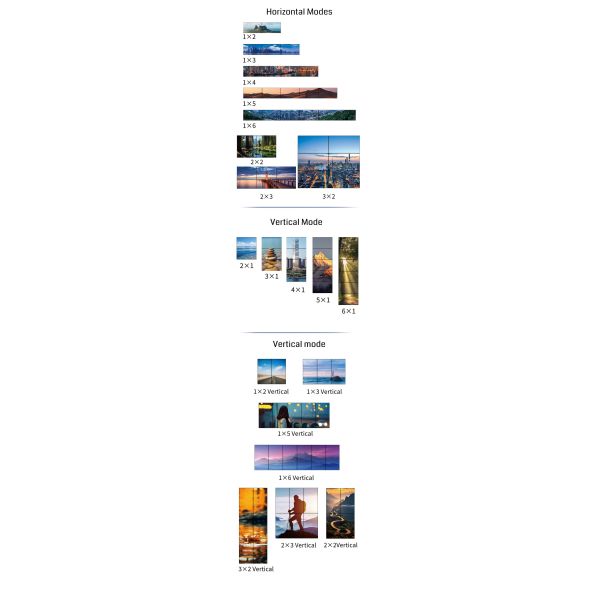

- Flexible display configurations: horizontal, vertical, and field shape combinations across 6 screens
- Input supports 3840x2400@60Hz, output supports 1920x1200@60Hz
- Output supports 180° rotation capability
- Zero distortion processing with no compression of input source
- Multiple control options: key control, infrared remote, RS232 serial port
- Compatible with computers, Android boxes, game consoles and other devices
- Powered by 40nm process FPGA chip for real-time, delay-free processing
Application Scenarios
Ideal for ultra-high-definition video surveillance, large screen walls, retail advertising displays, exhibition halls, and other professional applications requiring seamless multi-screen display solutions.
Contact us for project-specific product consultations and custom solutions!
Technical Specifications
| Model | VWC-106 |
| Input Interface | HDMI 2.0/DP 1.2, HDCP2.2 |
| Input Video Pixel Frequency | 600MHz |
| Input Resolution | 2x3: 5760x2160@30Hz
3x2: 3840x3240@30Hz
5x1: 1920x5400@30Hz
6x1: 1920x6480@30Hz |
| Output Interface | HDMI 1.3x6 (≤15m) |
| Output Resolution | 1920x1080@60Hz / 1920x1200@60Hz |
| Audio | HDMI follow out, 3.5mm audio splitter connector |
| Control Methods | Pushbutton, infrared remote control, serial port RS232 |
| Power Supply | DC 12V 2A |
| Power Consumption | 12W |
| Operating Temperature | 0～50ºC |
| Product Dimensions | 270x128x35mm |
| Package Weight | 1.6KG |
Included Accessories
- 12V power supply x1
- Remote control x1
- IR receiver head x1
- HDMI or DP cable x1
- USB to RS232 serial cable x1 (optional)
- 3-year warranty
Product Images
