4K60 Multi-Screen Expander with 1x4 Output and Delay-Free Processing for Video Wall and Image Control

Brand Name : Bitvisus

Model Number : BIT-MSE-4K60-104Pro

Certification : FCC/CE/RoHS/ANSI C63

Place of Origin : Guangdong China

MOQ : 1

Price : 1unit USD309,>10units USD268

Payment Terms : T/T,PayPal

Supply Ability : 1unit 3 days,10units 7 days

Delivery Time : 7 Days

Packaging Details : 37mm*24mm*11mm

Input Max. Pixel FPS : 600MHz

Output Max. Pixel FPS : 300MHz

Input type : HDMI or DP (choose one, HDMI priority)HDCP2.2

Output type : 4 HDMI

Product factory default resolution : 3840x2160@60Hz

Output distance : 15 meters

Power supply : 12V@2A AC-DC

3 screens support typical resolution : 3x1920x1200@60Hz,3x1920x1080@60Hz,3x1280x800@60Hz,3x1024x768@60Hz

4 screens support typical resolution : 4x1920x1200@60Hz,4x1920x1080@60Hz,4x1280x800@60Hz,4x1024x768@60Hz

Warranty : 1 year

Contact Now

4K60 Multi-Screen Expander 1 in 4 Out Versatile Applications
BIT-MSE-4K60-104PRO Industrial-Grade Multi-Screen Expander

Professional 4K multi-screen expander featuring HDMI/DP input with 4 HDMI outputs, supporting multi-ratio splicing and 90° rotation display configurations.

4K60 Multi-Screen Expander with 1x4 Output and Delay-Free Processing for Video Wall and Image Control
Key Features
  • Industrial-grade high-performance design for multi-desktop operation and multi-channel projection fusion
  • HDMI/DP input interface with 4 HDMI outputs

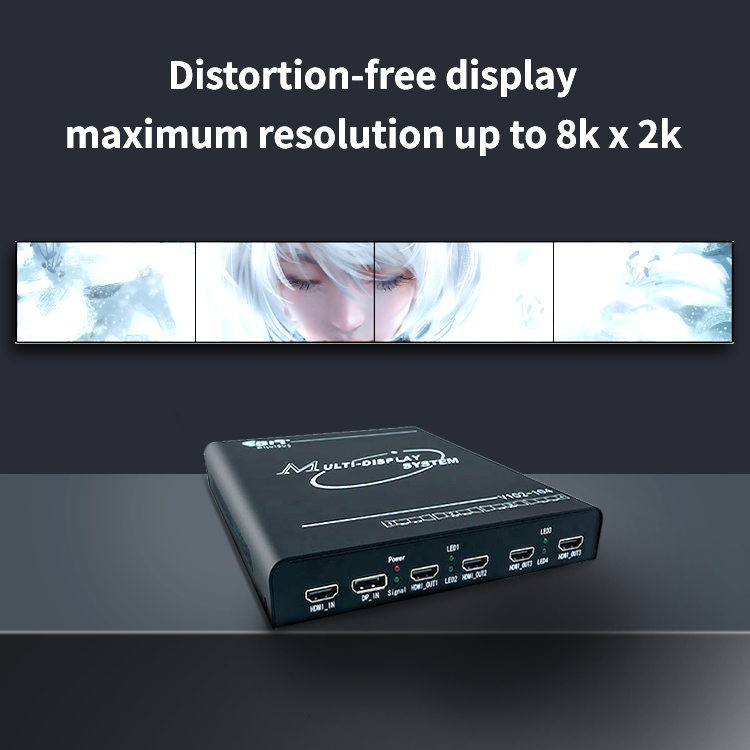

  • Maximum output resolution of 4x1920x1200@60Hz/1920x1200x4@60Hz with backward compatibility

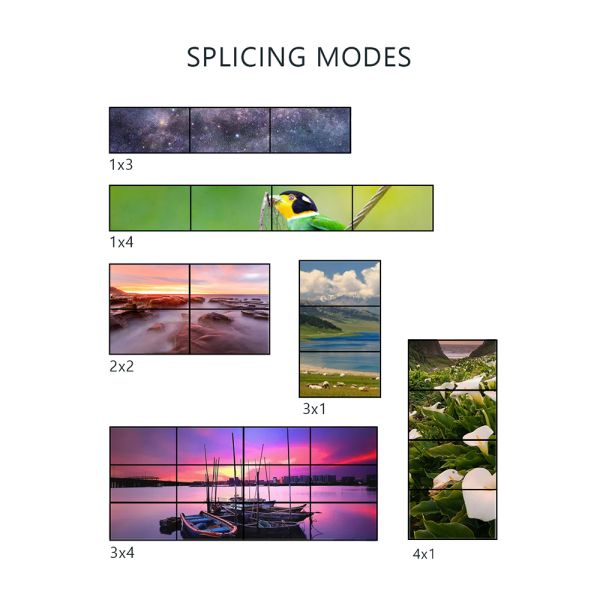

  • Supports 1xN, Nx1, MxN and 90° rotation ratio stitching without stretching or deformation
  • EDID modification capability via USB interface
  • High-end programmable 45nm FPGA chip with full hardware real-time processing
  • Ultra-fast processing speed with zero delay
  • Industrial-grade construction with 6-layer PCB and 16KV anti-static protection
  • Parallel operation support for large screen real-time display requirements
  • Low power consumption with conductive heat dissipation design
4K60 Multi-Screen Expander with 1x4 Output and Delay-Free Processing for Video Wall and Image Control 4K60 Multi-Screen Expander with 1x4 Output and Delay-Free Processing for Video Wall and Image Control
Technical Specifications
Product Name BIT-MSE-4K60-104Pro
Input Max. Pixel FPS 600MHz
Output Max. Pixel FPS 300MHz
Input Type HDMI or DP (HDMI priority), HDCP2.2
Output Type 4 HDMI
2x2 Max Supported Resolution 3840x2400@60Hz
3x1/1x3 Max Supported Resolution 1920x3600@60Hz/5760x1200@60Hz
4x1/1x4 Max Supported Resolution 1920x4800@60Hz/7680x1200@60Hz
Output Distance 15 meters
Warranty One year
4K60 Multi-Screen Expander with 1x4 Output and Delay-Free Processing for Video Wall and Image Control
Frequently Asked Questions
Why Choose Bitvisus?
  • Own warehouse ensuring shipment within 48 hours after payment (weekends and holidays excluded)
  • OEM/ODM services available for custom requirements
  • Extensive product range including Video Wall Controllers, Multiscreen Expanders, Multiviewers, Embedded Projector Fusion systems
  • Proven R&D experience and product quality assurance
Shipping & Payment

Payment Methods: T/T, Visa, PayPal, Western Union, L/C available.

Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
