Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing

Brand Name : Bitvisus

Place of Origin : Guangdong, China

MOQ : 1

Price : CN¥7,867.49-10,848.85

Input interface : 12 x HDMI 2.0

Input pixel frequency : 600MHz

Input resolution : 3840x2160P60

Color depth : 8bit

Color format : RGB444, YUV444, YUV422, YUV420

Output interface : 12 x HDMI 2.0

Output pixel frequency : 600MHz

Output resolution : 4096x2160P60

Control mode : RS232 serial port, Web, key pad

Audio output : HDMI output audio with out, separate

Power source : 220V

Power dissipation : 72W

Product weight : 5KG

Product size : 483mm×200mm×130mm

Material : Metal

Contact Now

Configurable 4K60 Splicing & Matrix Processor
4-12 Input 4-12 Output Via Plug-in Cards for Multi-Scale Video Wall Projects
Product Overview
The BIT-VWC-MD1212Ma is a professional splicing and seamless matrix switching device independently developed by Bitvisus. Featuring high-definition processing capabilities, this advanced processor supports 12-channel 4K60 HDMI 2.0 inputs and 12-channel 4K60 HDMI 2.0 outputs. The modular design allows for flexible configuration with plug-in boards, where each board provides 4 HDMI 2.0 interfaces. With comprehensive control options including remote, serial port, and network interfaces, plus intuitive button controls and LCD display, this device delivers exceptional image quality, reliability, and ease of operation for demanding professional environments.
Ideal Applications: Conference rooms, command centers, commercial displays, advertising systems, exhibition halls, and conference centers.
Key Features
  • 12-channel 4K60 HDMI 2.0 input and output capability for versatile multi-input, multi-output configurations

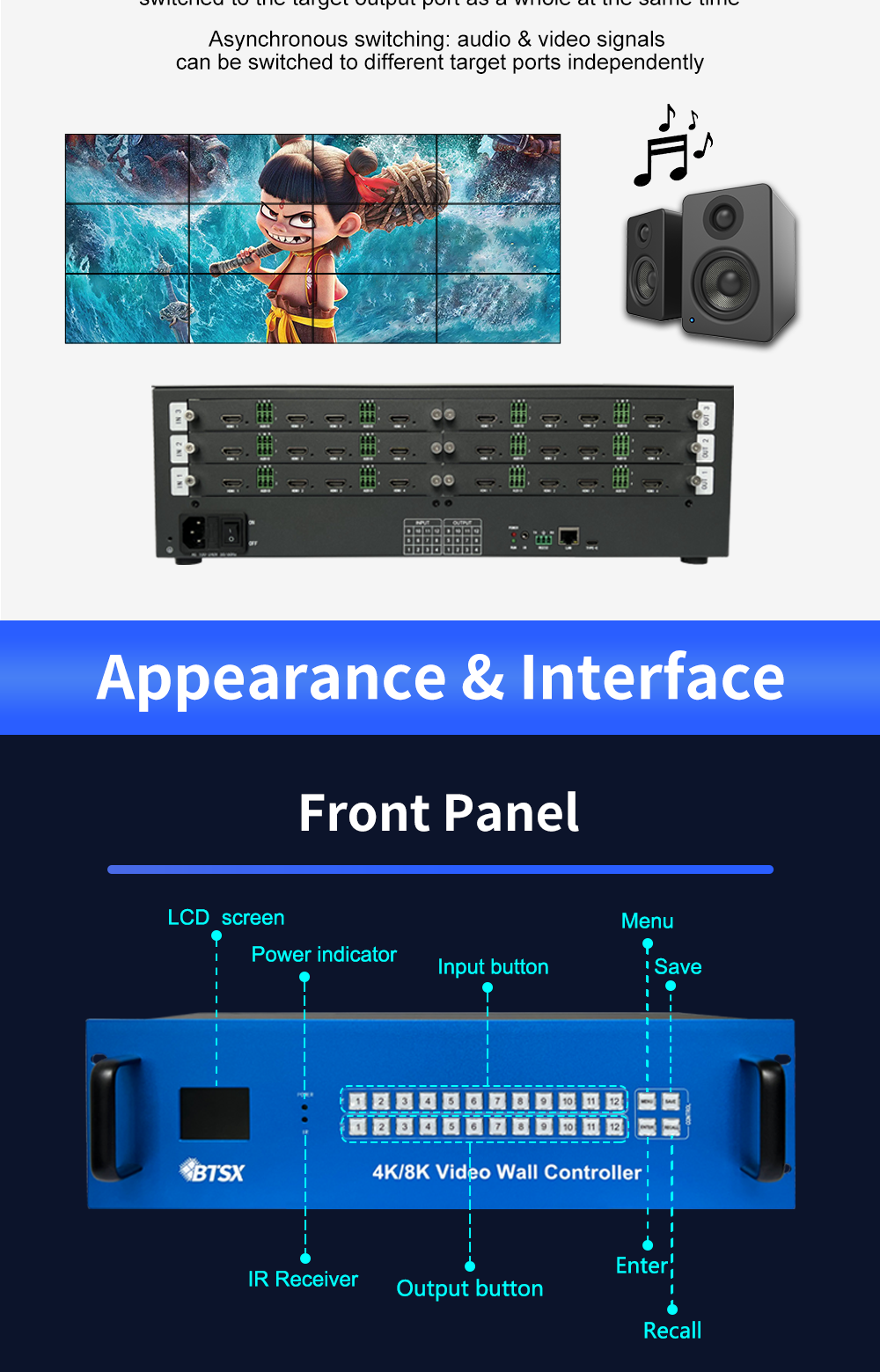

  • Advanced audio matrix functionality with external audio input support and flexible switching
  • Modular plug-in chassis structure with 1-3 boards (4 channels per board) for customizable I/O configuration
  • Comprehensive control options: keypad, RS232, network WEB, and API interface control

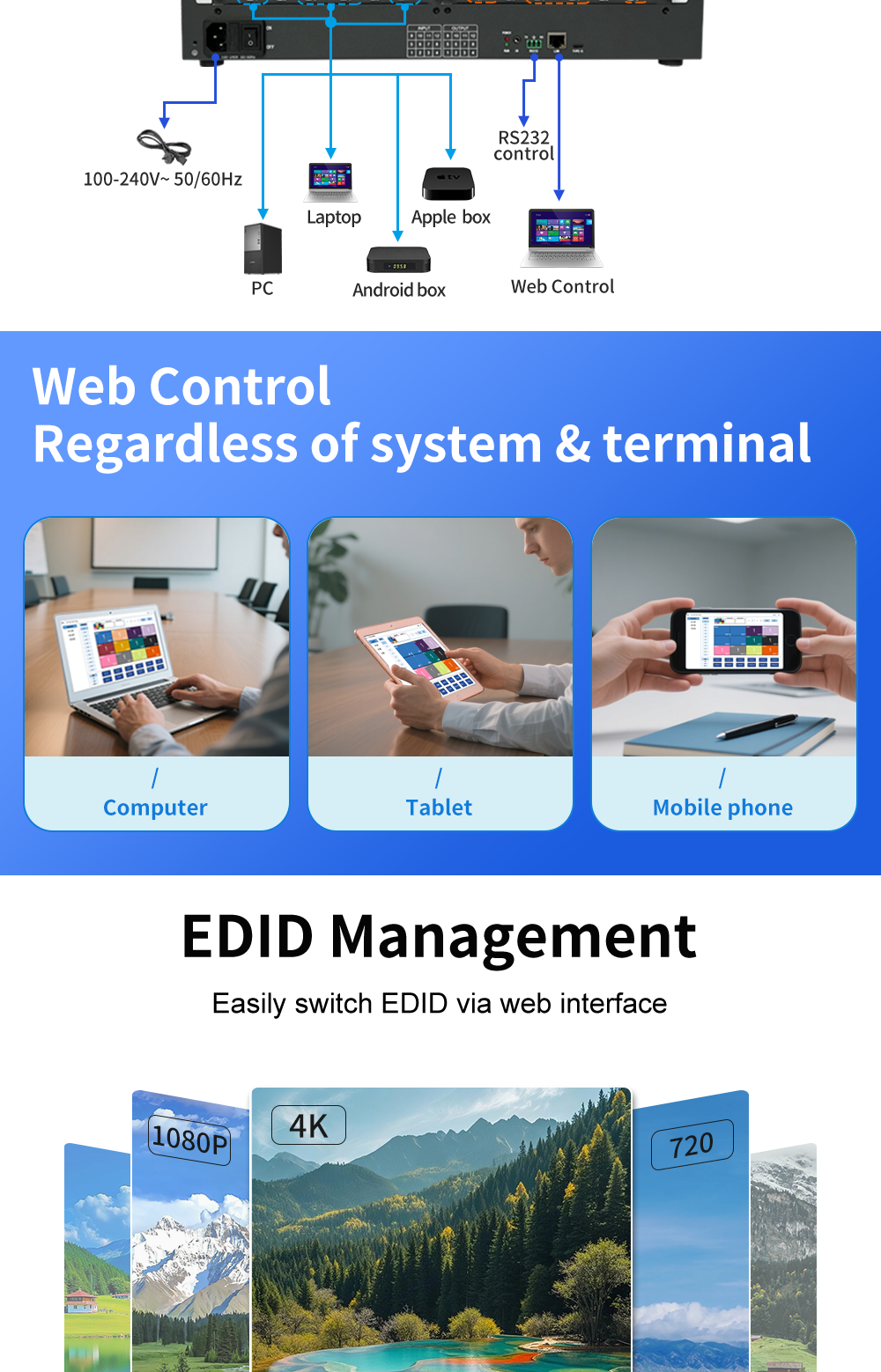

  • Cross-platform WEB control accessible from Windows, Apple computers, tablets, and mobile devices

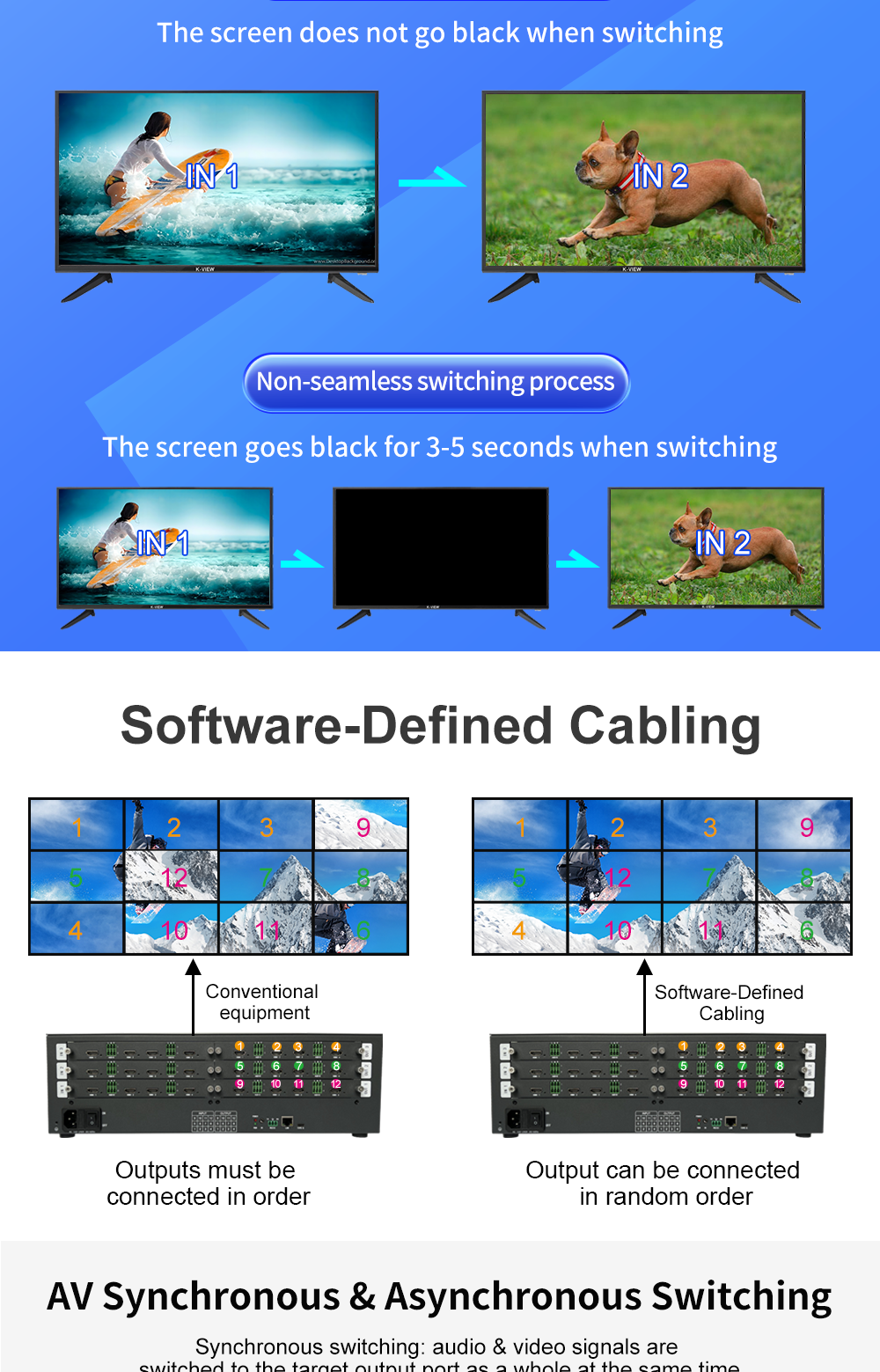

  • Seamless input signal switching with no black screens or screen flickering

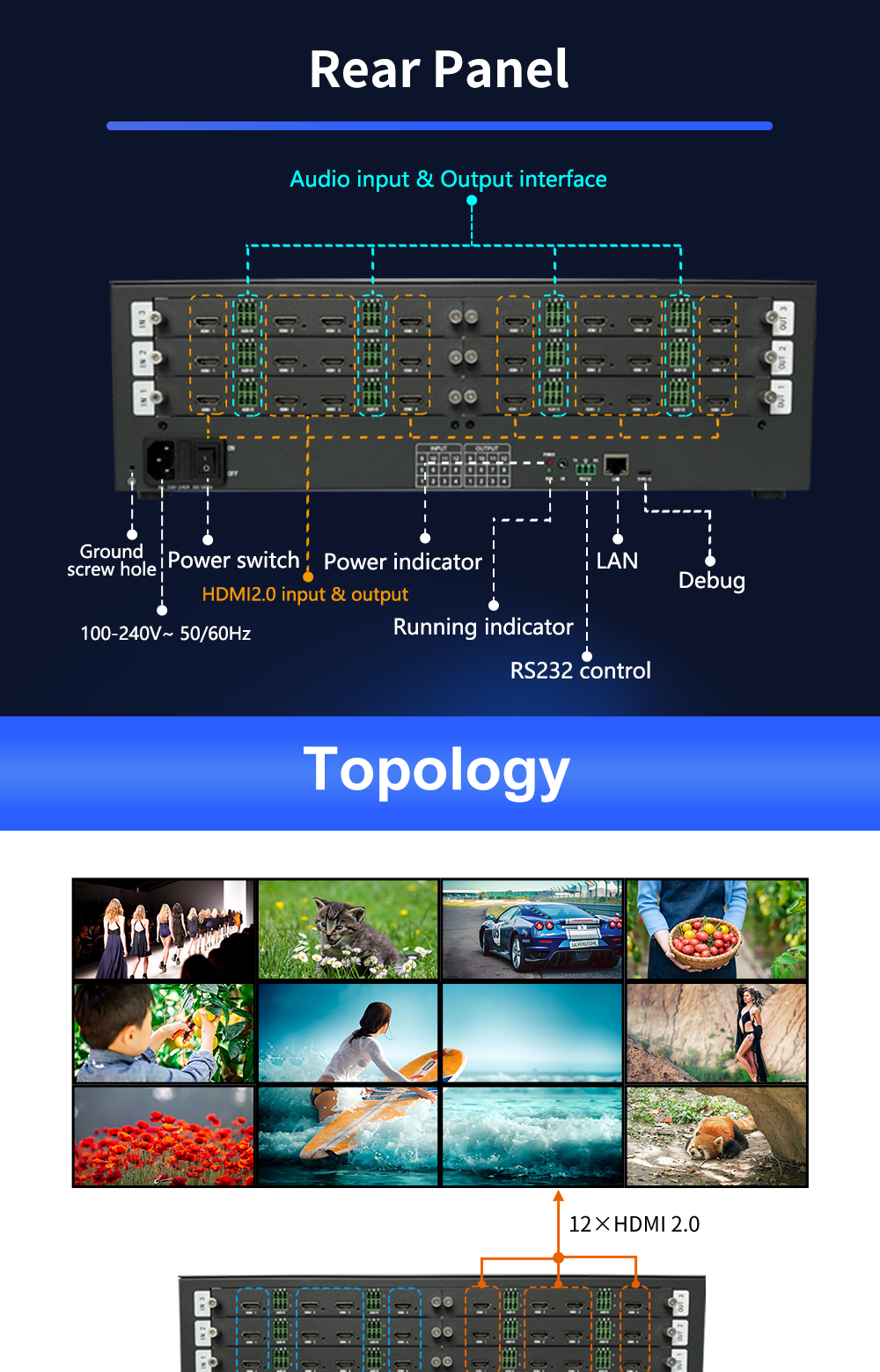

  • Flexible video wall splicing supporting up to 12 screens with custom layouts (e.g., 2x2+2x2+1x4)

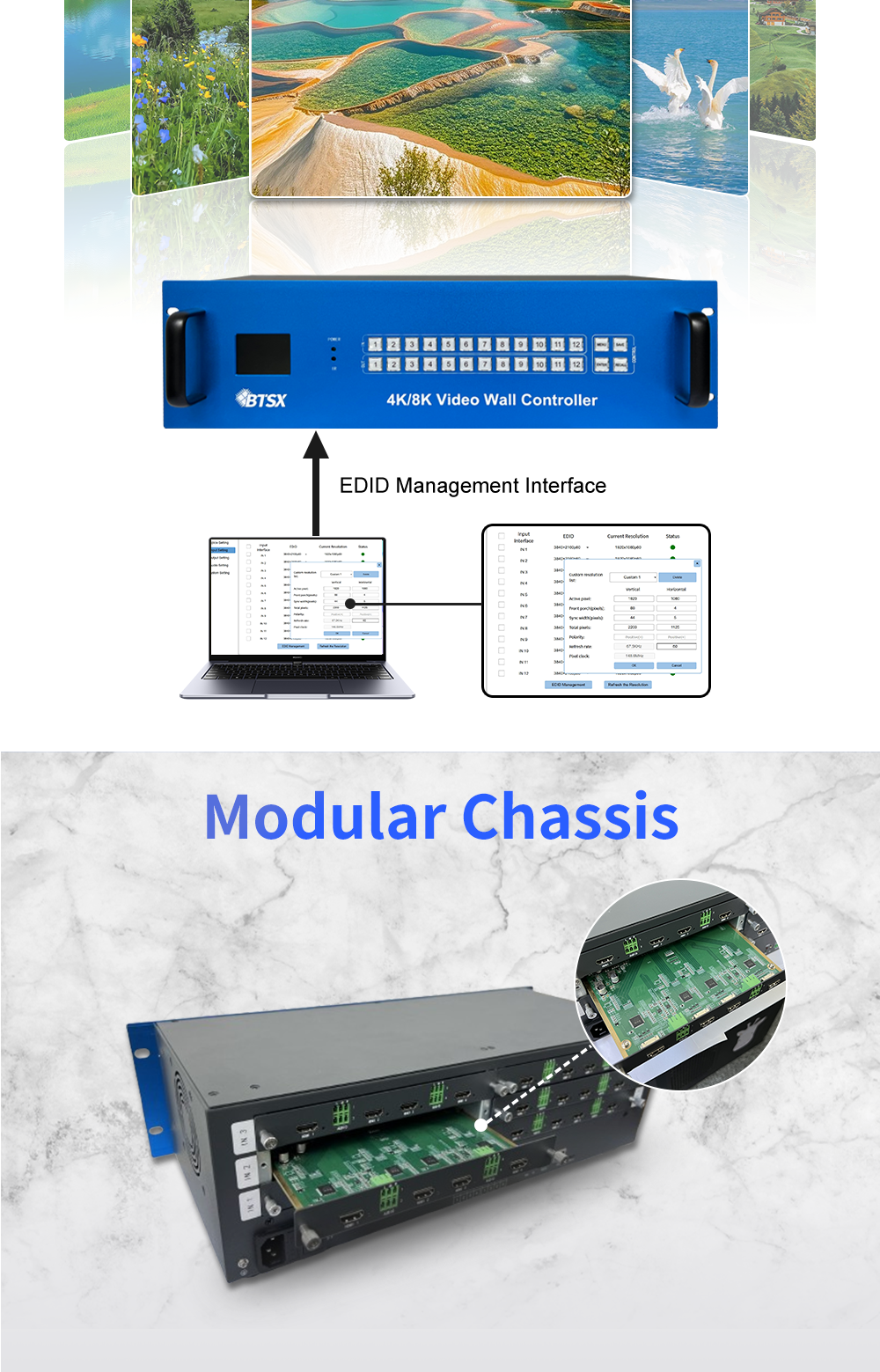

  • Custom resolution support for independent graphics cards with comprehensive EDID management
  • Blind plug-in output interface configuration with flexible output sequence modification
  • 12 pre-planned scene storage and recall capability
  • Independent operation of three screens for flexible multi-scene configurations
  • WEB API interface for customer customization and secondary development
  • Built-in output signal enhancement for stable, clear long-distance transmission
Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing Configurable 4K60 Video Wall Controller with 12x HDMI 2.0 Input and Output for Seamless Splicing and Matrix Processing
Technical Specifications
Product Name BIT-VWC-MD1212Ma
Input Interface 12× HDMI 2.0
Maximum Input Pixel Clock 600MHz
Maximum Input Resolution 3840×2160P60
Color Depth 8bit
Color Format RGB444, YUV444, YUV422, YUV420
Output Interface 12× HDMI 2.0
Maximum Output Pixel Clock 600MHz
Output Resolution 4096×2160P60
Control Methods RS232 serial port, Web, key pad
Audio HDMI output audio with out, separate
Power Source 220V
Power Consumption 72W (3 input cards, 3 output cards)
Product Weight 5KG
Packing Weight 5.7 KG
Product Dimensions 483mm × 200mm × 130mm
