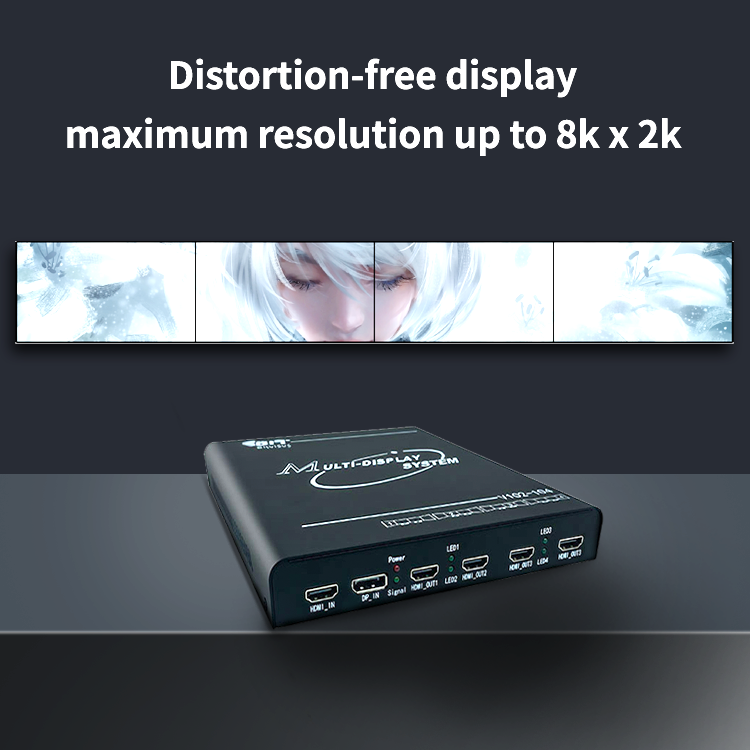

4K60 Multi-Screen Expander 104HD FPGA 1 in 4 Out 2X2 Video Wall Controller
Industrial-grade video wall controller with seamless loop-out for digital signage applications
Product Overview
Key Features
- Industrial-grade high-performance product for multi-desktop operation and multi-channel projection fusion
- HDMI input interface with DVI output compatibility
- Super high resolution support up to 7680x1200 @ 30Hz / 1920x4800 @ 30Hz
- Support for 1xN, Nx1, MxN and 90° rotation ratio stitching without stretching or deformation
- High-end programmable FPGA chip with 45nm technology and full hardware real-time processing
- Industrial-grade design with thickened 6-layer PCB board and 16KV anti-static protection
- Parallel operation capability for real-time display requirements on large screens
- Low power consumption with conductive heat dissipation and energy-efficient design
Common applications include ultra-high-resolution desktop applications, large screen walls, command and dispatch systems, multi-screen video surveillance, engineering display applications, multi-channel projection, VR, ring screen theaters, large advertising walls, and LCD/LED multi-screen displays.
Technical Specifications
| Product Name | BIT-MSE-4K60-104HD |
| Input Max. Pixel FPS | 600MHz |
| Output Max. Pixel FPS | 330MHz |
| Input Type | HDMI or DP (choose one, HDMI priority) |
| Output Type | 4 HDMI ports |
| 3 Screens Typical Resolution | 3x1920x1200@60Hz, 3x1920x1080@60Hz, 3x1280x800@60Hz, 3x1024x768@60Hz |
| 4 Screens Typical Resolution | 4x1920x1200@60Hz, 4x1920x1080@60Hz, 4x1280x800@60Hz, 4x1024x768@60Hz |
| Factory Default Resolution | 3840x2160@60Hz |
| 1x3 Max Supported Resolution | 5760x1200@60Hz |
| 1x4 Max Supported Resolution | 7680x1200@60Hz |
| Output Distance | 15 meters |
| Power Supply | 12V@2A AC-DC |
| Warranty | One year |
Company Profile
Frequently Asked Questions
Who are we?
Based in Guangdong, China, established in 2018. We serve markets including North America (30%), Domestic Market (30%), Southeast Asia (20%), Mid East (10%), and Northern Europe (10%). Our office employs 11-50 people.
How can we guarantee quality?
Always provide pre-production samples before mass production and conduct final inspection before shipment.
What can you buy from us?
TV Video Wall Controller, HDMI Extender, HDMI Matrix Switcher, Multi Viewer, HDMI Fiber Cable
Why should you buy from us instead of other suppliers?
Bitvisus has a strong R&D team with over 10 experienced engineers, many from leading companies like Huawei, ZTE, and Xilinx. We bring more than 15 years of rich experience in the audio & video industry.
What services can we provide?
Accepted Delivery Terms: FOB, EXW, FCA, DDP, Express Delivery, DAF. Accepted Payment Currency: USD, HKD, CNY. Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash. Languages Spoken: English, Chinese, Spanish, Japanese, French, Russian, Korean.
